VH-1445

Vertical Hydraulic Hot Plate Welder

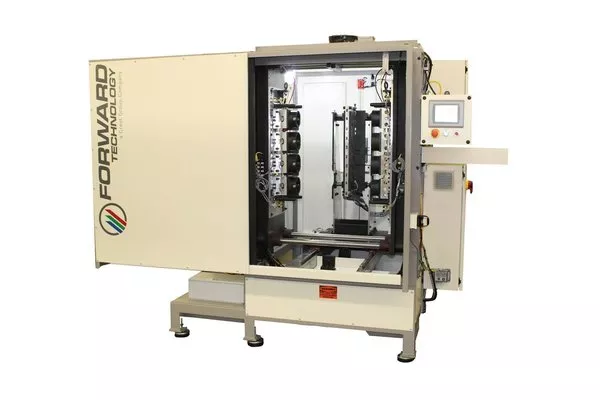

The VH-1445 is a vertical heat platen orientation, hydraulic motion controlled hot plate welding system capable of welding parts up to 14" x 45" (356mm x 1143mm) or multiple smaller parts. Customized variants of this model are available.

When compared to horizontal platen systems, vertical systems typically:

  • Allow faster tooling changeovers.
  • Allow easier and more positive operator loading and unloading of the tooling.
  • Ensure more precise part half alignment during welding (less scrap) as no special part-part alignment features must be designed into the parts themselves (required for accurate machine pick-up of one part half on horizontal systems).

Optional Features.

Please view our product options below. Click the option for a larger image.

Standard Features

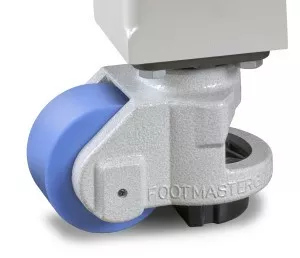

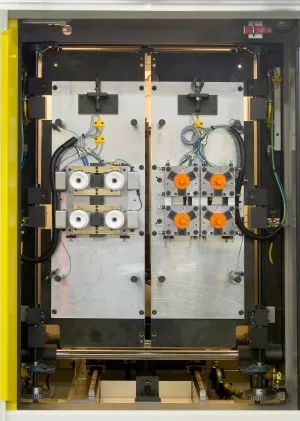

Ultra-Rigid Construction utilizing a tubular steel framework with leveling feet and linear guide shafts & bearings designed for precise tool alignment through decades of use.

Hydraulic System with Proportional Valve Control and Linear Position Transducers offers improved control and reduced machine and coating wear by user programmed variable tool mounting jaws and heat platen carriage pressures and speeds, including soft-touch contact of part halves to heat platen (Melt) and each other (Weld/Seal).

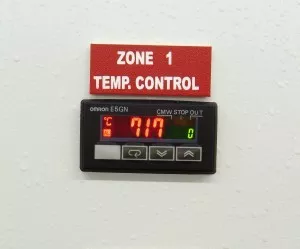

Digital Two-Zone Temperature Control via PLC with Heater Burnout Alarm ensures even heating and precise temperature control with temperature alarm limits. Burnout alarm halts operation of the machine in the event of platen heater failure.

Programmable Automatic Machine and Heat Platen Startup (Time/Date Based) saves production time as the machine can be user programmed to automatically initialize warm-up of heat platen and hydraulic system before start of production.

Allen Bradley CompactLogix PLC with PanelView Plus 7 - 700 Color 6.5in Touch-Screen Graphical Display simplifies parameter input and allows the following to be displayed:

  • Melt, Weld (Seal), & Open Time Digital Control & Display
  • Resettable Parts Counter
  • Non-Resettable Total Machine Cycle Counter
  • Diagnostic Display
  • Machine Alarms (history storage of up to 99 alarms)
  • Ethernet Connectivity

Multi-Level Passcode Protection limits parameter adjustment to qualified personnel only.

25 Weld Program/Setup Memory allows storage for instant recall, minimizing tool change time.

External 120VAC Duplex Electrical Outlet allows user to easily connect small auxiliary equipment such as computers, printers, radios, etc.

Dual Venturi 25.0 in/Hg (63.5cm/Hg) Vacuum Pump System designed to secure even the largest parts within the tooling.

Pneumatic Power Sliding Safety Door with Zero Force Cycle Activation Switch provides optimum personnel protection while reducing operator fatigue.

Hinged Access Panels with Safety Interlock Switches allow extensive access while providing maximum personnel protection.

Vent Hood with Exhaust Fan evacuates airborne smoke and particulate from the operator location when welding at high temperatures without coatings.

Sequence of Operation

  • 1.Operator loads part halves into holding fixtures.
  • 2.Operator initiates cycle activation switch.
  • 3.Safety door closes.
  • 4.Part halves are automatically held with vacuum or mechanical grippers.
  • 5.Heat platen advances between part halves.
  • 6.Holding fixtures apply part halves to heat platen.
  • 7.Holding fixtures retract from heat platen.
  • 8.Heat platen retracts.
  • 9.Holding fixtures apply part halves together, welding parts together.
  • 10.One holding fixture releases its clamping mechanism.
  • 11.Holding fixtures retract, retaining welded part(s) in one fixture.
  • 12.Safety door opens.
  • 13.Operator unloads welded part(s).
