When compared to horizontal platen systems, vertical systems typically:
Please view our product options below. Click the option for a larger image.
Ultra-Rigid Construction utilizing a tubular steel framework with leveling feet and linear guide shafts & bearings designed for precise tool alignment through decades of use.
Hydraulic System with Proportional Valve Control and Linear Position Transducers offers improved control and reduced machine and coating wear by user programmed variable tool mounting jaws and heat platen carriage pressures and speeds, including soft-touch contact of part halves to heat platen (Melt) and each other (Weld/Seal).
Digital Four-Zone Temperature Control via PLC with Heater Burnout Alarm ensures even heating and precise temperature control with temperature alarm limits. Burnout alarm halts operation of the machine in the event of platen heater failure.
Programmable Automatic Machine and Heat Platen Startup (Time/Date Based) saves production time as the machine can be user programmed to automatically initialize warm-up of heat platen and hydraulic system before start of production.

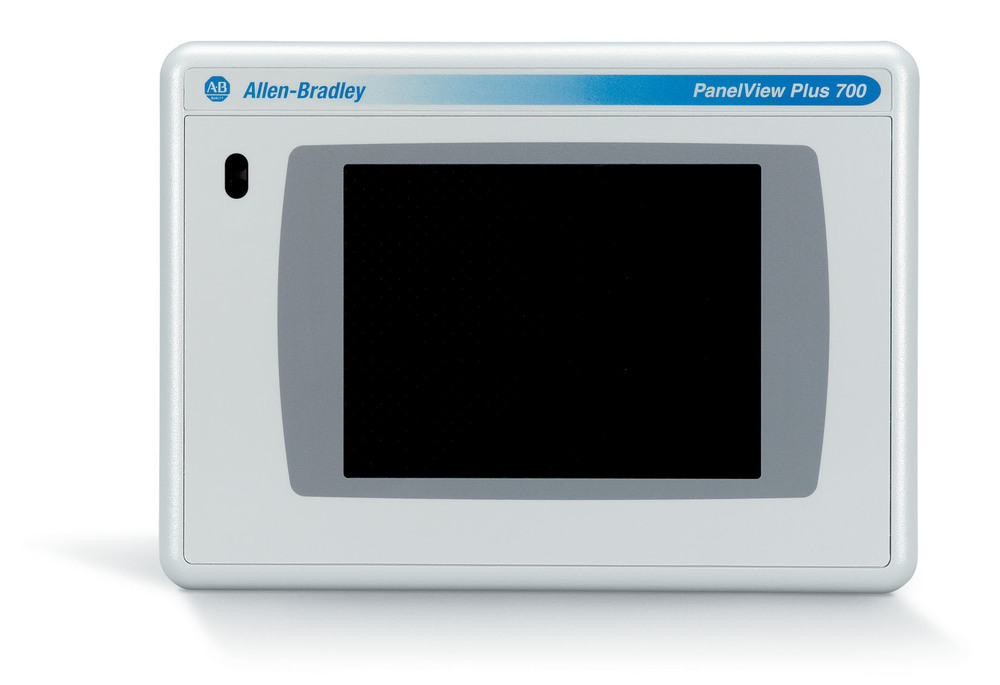

Allen Bradley CompactLogix PLC with PanelView Plus 7 - 700 Color 6.5in Color Touch-Screen Graphical Display simplifies parameter input and allows the following to be displayed:
Multi-Level Passcode Protection limits parameter adjustment to qualified personnel only.
25 Weld Program/Setup Memory allows storage for instant recall, minimizing tool change time.
External 120VAC Duplex Electrical Outlet allows user to easily connect small auxiliary equipment such as computers, printers, radios, etc.
Dual Venturi 25.0 in/Hg (63.5cm/Hg) Vacuum Pump System designed to secure even the largest parts within the tooling.
Pneumatic Power Sliding Safety Door with Zero Force Cycle Activation Switch provides optimum personnel protection while reducing operator fatigue.
Hinged Access Panels with Safety Interlock Switches allow extensive access while providing maximum personnel protection.
Vent Hood with Exhaust Fan evacuates airborne smoke and particulate from the operator location when welding at high temperatures without coatings.
