Digital (Servo-Drive) Linear Vibration Welder

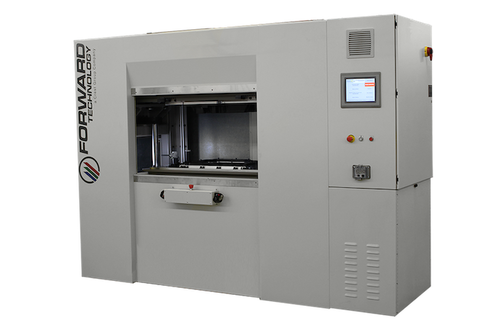

The DLVW-2248 is a hydraulic motion controlled digital (servo-electric) drive linear vibration welder capable of welding parts up to 22" x 48" (559mm x 1219mm) or multiple smaller parts.
The patented 2-pole digital (servo) drive technology allows vastly improved process control while substantially increasing the available power. This technology offers improvements in overall efficiency (significant power increase), capability (amplitude/process control) and productivity (application benefits) beyond any vibration welding design currently on the market.
The patented 2-pole digital (servo) drive technology allows vastly improved process control while substantially increasing the available power. This technology offers improvements in overall efficiency (significant power increase), capability (amplitude/process control) and productivity (application benefits) beyond any vibration welding design currently on the market.

AB PanelView Plus 7 - 1000 Graphic Display Upgrade

Programmable Vacuum Sensing Switch w/ LCD Readout

Additional Lower Tooling Pneumatic Actuation Valves

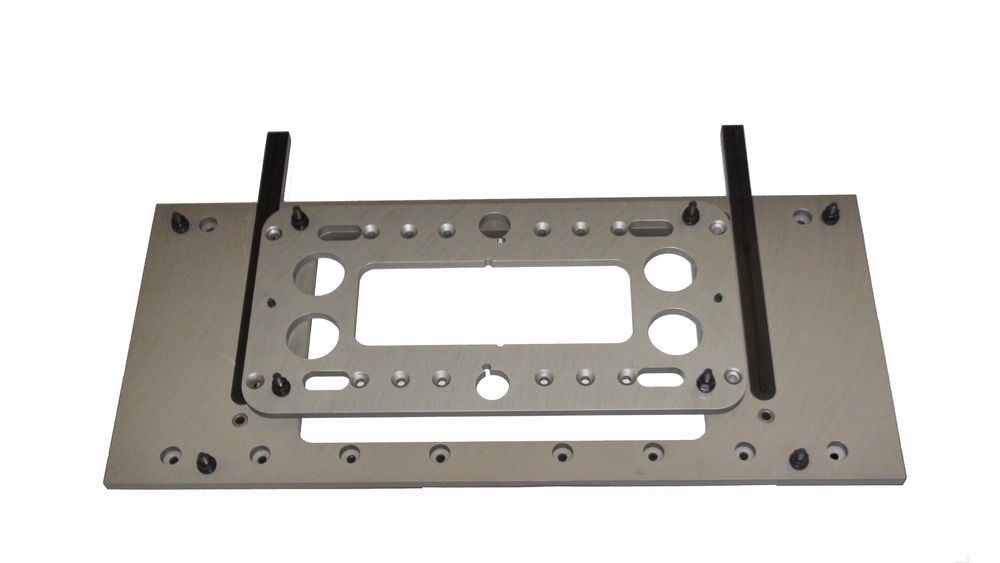

Quick Change Base Plates

Light Screen Safety Protection (VW)

Pneumatically Operated Pass-Thru Rear Access Safety Door

External Lighting (Lg.)

Quick Disconnect Tooling Sensors

Quick Disconnect Outlets for Tooling Sensors

LED Four-Color Light Tower

Bilingual Equipment Manual

Bilingual User Interface Panel

Individual User Passcode Log-In

Pendant Arm Mounted User Interface

Special Operating Voltages Transformer
- Operator loads part halves into holding fixture(s).
- Operator initiates cycle activation switches.
- Safety door closes.
- Lift table rises, applying pressure between the two part halves.
- Vibration begins, melting the joint area between the two halves.
- Vibration stops when user programmed target Time (or optional Collapse Distance or Absolute Distance) is reached.
- Parts are held together under pressure to allow them to re-solidify.
- Lift table lowers, carrying part(s) in lower fixture(s).
- Safety door opens.
- Operator unloads part(s) from lower fixture(s).
