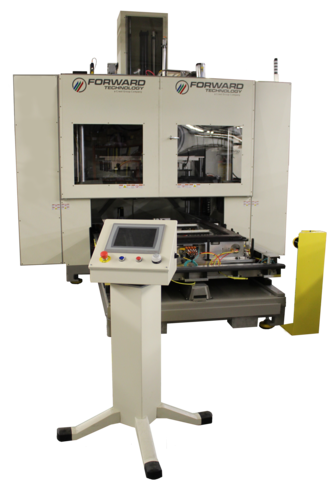

Horizontal Hydraulic & Servo Hot Plate Pallet Welder
The HHS-5062 is a horizontal heat platen orientation, hydraulic and servo-electric motion controlled hot plate welding system specifically designed for welding plastic pallets up to 50" x 62" (1270mm x 1575mm). Customized variants of this model are available.
The system design is ideal for welding: Pallet top decks to bases. Pallet feet to bases. Pallet sidewall assemblies.
External Lighting (Lg.)
Quick Disconnect Tooling Sensors
Quick Disconnect Outlets for Tooling Sensors
LED Four-Color Light Tower
Bilingual Equipment Manual
Bilingual User Interface Panel
Individual User Passcode Log-In
Special Operating Voltages Transformer
- Operator loads part halves together into holding fixture.
- Operator initiates cycle activation switches.
- Powered Lower Tool Carriage indexes into machine.
- Upper tool mounting jaw descends and picks up upper part half and retracts.
- Part halves are automatically held with vacuum or mechanical grippers.
- Heat platen advances between part halves.
- Holding fixtures apply part halves to heat platen.
- Holding fixtures retract from heat platen.
- Heat platen retracts.
- Holding fixtures apply part halves together, welding parts together.
- Upper holding fixture releases its clamping mechanism.
- Holding fixtures open, retaining welded part(s) in lower fixture.
- Powered Lower Tool Carriage indexes out of machine.
- Operator unloads welded part(s).
