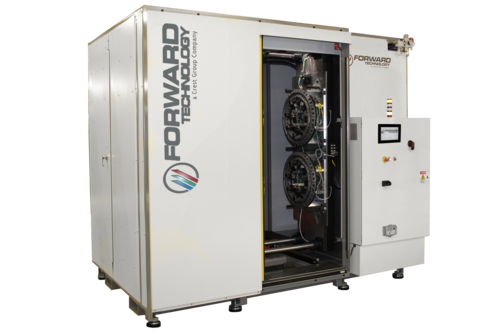

Vertical Hydraulic Hot Plate Welder
The VH-1870 is a vertical heat platen orientation, hydraulic motion controlled hot plate welding system capable of welding parts up to 18" x 70" (457mm x 1778mm) or multiple smaller parts. Customized variants of this model are available.
When compared to horizontal platen systems, vertical systems typically: Allow faster tooling changeovers. Allow easier and more positive operator loading and unloading of the tooling. Ensure more precise part half alignment during welding (less scrap) as no special part-part alignment features must be designed into the parts themselves (required for accurate machine pick-up of one part half on horizontal systems).
AB PanelView Plus 7 - 700 Graphic Display Upgrade
Collision Guarding Package
Heavy Duty Leveling Casters (Lg.)
External Lighting (Lg.)
Quick Disconnect Tooling Sensors
Heat Platen Pre-Heat Controller
Heat Platen & Tooling/Fixture Storage Cart w/ Casters
Quick Disconnect Outlets for Tooling Sensors
Pivoting Left - Right Tool Mounting Jaws
Fork Lift Tubes
Light Screen Safety Protection (HP)
LED Four-Color Light Tower
Bilingual Equipment Manual
Bilingual User Interface Panel
Individual User Passcode Log-In
Pendant Arm Mounted User Interface
Special Operating Voltages Transformer
Additional Temperature Control Zone w/ Heater Burnout Alarm
- Operator loads part halves into holding fixtures.
- Operator initiates cycle activation switch.
- Safety door closes.
- Part halves are automatically held with vacuum or mechanical grippers.
- Heat platen advances between part halves.
- Holding fixtures apply part halves to heat platen.
- Holding fixtures retract from heat platen.
- Heat platen retracts.
- Holding fixtures apply part halves together, welding parts together.
- One holding fixture releases its clamping mechanism.
- Holding fixtures retract, retaining welded part(s) in one fixture.
- Safety door opens.
- Operator unloads welded part(s).
