VHF-1015
VHF-1015

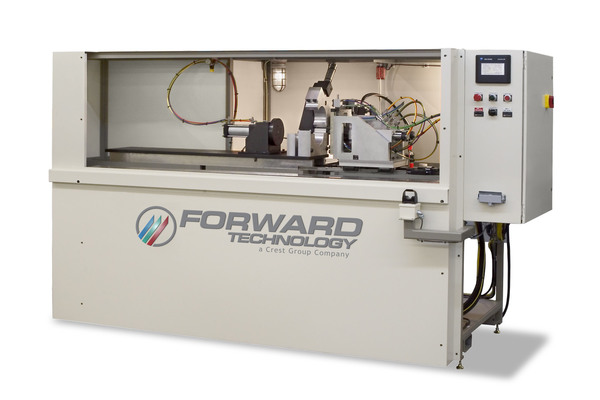

Vertical Hydraulic Hot Plate Filter Welder
The VHF-1015 is a vertical heat platen orientation, hydraulic motion controlled hot plate welding system specifically designed for welding filter assemblies up to 10 D x 15 H x 69 L (254mm x 381mm x 1753mm). Customized variants of this model are available.
The system design is ideal for: Welding stackable filter cartridge modules together. Embedding filter media into plastic end caps (replacing potting operations). Welding of filtration housings. Welding termination fittings (ie: end-caps, twist-lock unions, O-ring fittings, etc..) to the ends of filter cartridge modules.
AB PanelView Plus 7 - 1000 Graphic Display Upgrade
External Lighting (Lg.)
Platen Cleaning Brush System
Quick Disconnect Tooling Sensors
Heat Platen Pre-Heat Controller
Heat Platen & Tooling/Fixture Storage Cart w/ Casters
Quick Disconnect Outlets for Tooling Sensors
Heavy Duty Leveling Casters (Sm.)
Fork Lift Tubes
Light Screen Safety Protection (HP)
LED Four-Color Light Tower
Bilingual Equipment Manual
Bilingual User Interface Panel
Individual User Passcode Log-In
Pendant Arm Mounted User Interface
Special Operating Voltages Transformer
Additional Temperature Control Zone w/ Heater Burnout Alarm
- Operator loads part halves into holding fixtures.
- Operator initiates cycle activation switch.
- Safety door closes.
- Part halves are automatically held with vacuum or mechanical grippers.
- Heat platen advances between part halves.
- Holding fixtures apply part halves to heat platen.
- Holding fixtures retract from heat platen.
- Heat platen retracts.
- Holding fixtures apply part halves together, welding parts together.
- One holding fixture releases its clamping mechanism.
- Holding fixtures retract, retaining welded part(s) in one fixture.
- Safety door opens.
- Operator unloads welded part(s).
