ESVAIR-1015

Extended Stroke Vertical Air/Pneumatic Infrared Welder

The ESVAIR-1015 is an extended stroke, vertical infrared platen orientation, pneumatic motion controlled infrared welding system capable of welding parts up to 10" D x 15" H (254mm x 381mm) or multiple smaller parts. Customized variants of this model are available.

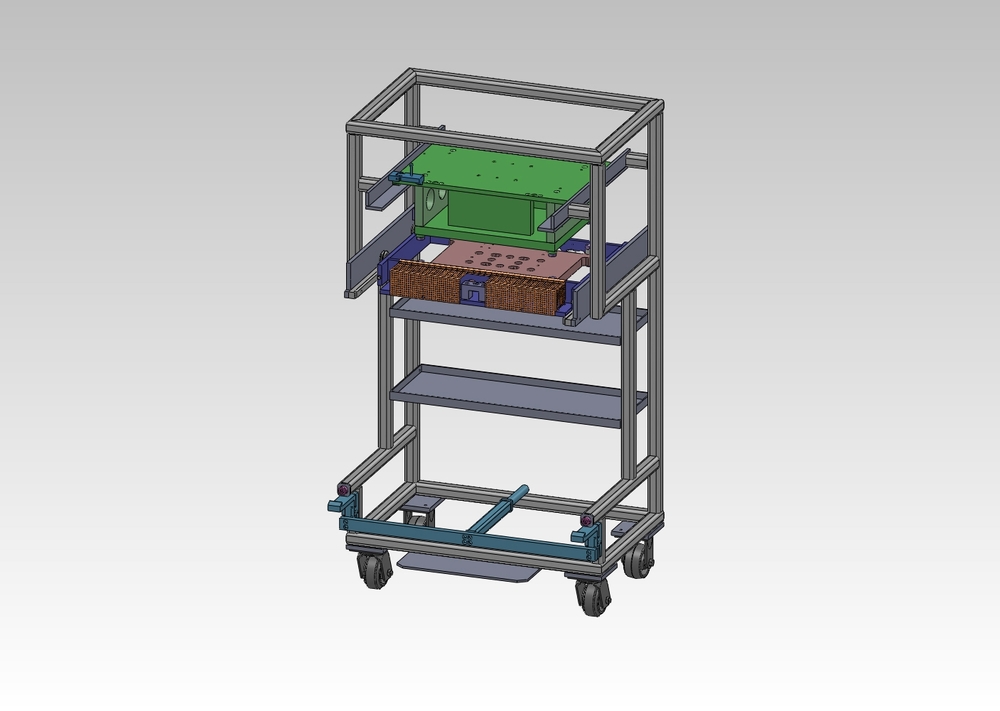

When compared to horizontal platen systems, vertical systems typically: Reduce risk of molten material possibly dripping onto the infrared platen during the melt step (resulting in premature emitter failure). Allow faster tooling changeovers. Allow easier and more positive operator loading and unloading of the tooling. Ensure more precise part half alignment during welding (less scrap) as no special part-part alignment features must be designed in the parts themselves (required for accurate machine pick-up of one part half on horizontal systems).
  1. Operator loads part halves into holding fixtures.
  2. Operator initiates cycle activation switch.
  3. Safety doors close.
  4. Part halves are automatically held with vacuum or mechanical grippers.
  5. Infrared platen advances between part halves.
  6. Holding fixtures close to make contact with precise mechanical hard-stops on the infrared platen which maintain spacing between the parts and the infrared platen without actual contact.
  7. Infrared platen energizes, heating joint areas of part halves.
  8. Infrared platen de-energizes and holding fixtures retract away from infrared platen.
  9. Infrared platen retracts.
  10. Holding fixtures apply part halves together, welding parts together.
  11. One holding fixture releases its clamping mechanism.
  12. Holding fixtures open, retaining welded part(s) in one fixture.
  13. Safety doors open.
  14. Operator unloads welded part(s).
