VHIR-1445
VHIR-1445

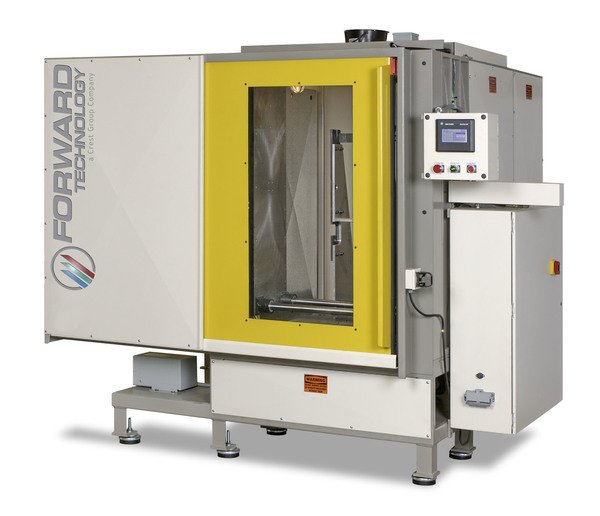

Vertical Hydraulic Infrared Welder
The VHIR-1445 is a vertical infrared platen orientation, hydraulic motion controlled infrared welding system capable of welding parts up to 14" x 45" (356mm x 1143mm) or multiple smaller parts. Customized variants of this model are available.
When compared to horizontal platen systems, vertical systems typically: Reduce risk of molten material possibly dripping onto the infrared platen during the melt step (resulting in premature emitter failure). Allow faster tooling changeovers. Allow easier and more positive operator loading and unloading of the tooling. Ensure more precise part half alignment during welding (less scrap) as no special part-part alignment features must be designed in the parts themselves (required for accurate machine pick-up of one part half on horizontal systems).
Infrared Tooling/Fixture Storage Cart w/ Casters
AB PanelView Plus 7 - 1000 Graphic Display Upgrade
Heavy Duty Leveling Casters (Lg.)
External Lighting (Lg.)
Quick Disconnect Tooling Sensors
Quick Disconnect Outlets for Tooling Sensors
Pivoting Left - Right Tool Mounting Jaws
Fork Lift Tubes
Light Screen Safety Protection (HP)
LED Four-Color Light Tower
Bilingual Equipment Manual
Bilingual User Interface Panel
Individual User Passcode Log-In
Pendant Arm Mounted User Interface
Special Operating Voltages Transformer
- Operator loads part halves into holding fixtures.
- Operator initiates cycle activation switch.
- Safety door closes.
- Part halves are automatically held with vacuum or mechanical grippers.
- Infrared platen advances between part halves.
- Holding fixtures close to make contact with precise mechanical hard-stops on the infrared platen which maintain spacing between the parts and the infrared platen without actual contact.
- Infrared platen energizes, heating joint areas of part halves.
- Infrared platen de-energizes and holding fixtures retract away from infrared platen.
- Infrared platen retracts.
- Holding fixtures apply part halves together, welding parts together.
- One holding fixture releases its clamping mechanism.
- Holding fixtures open, retaining welded part(s) in one fixture.
- Safety door opens.
- Operator unloads welded part(s).
