Pneumatic Thermal Staker

Description

The PTS (Pneumatic Thermal Staker) is a pneumatically powered vertical motion Heat Staking Welder designed for a wide variety of heat staking applications requiring a high degree of precision and consistency. This welder offers a simple, cost effective solution to quickly assemble parts that require a single or multiple heat stake(s). The machine chassis features an ultra-rigid extruded aluminum column to minimize deflection that can contribute to an inconsistent Thermal Staking process. A microprocessor controller with color touch-screen HMI and a vertical axis Linear Encoder provides enhanced over all process control and more consistent production quality.



Advantages of the Pneumatic Thermal Staker:

  • Multiple application uses including heat staking, inserting, embossing, and de- gating.
  • Compatible with a wide variety of materials including most thermoplastics and some difficult to weld materials.
  • Air Post Cooling feature enhances release of stake head from applications with little to no material build-up.



Additional Information

Standard Features

  • Ultra-Rigid Rectangular Column minimizes deflection of the system under even the highest pressures.
  • Modular Design allows adaptability to a variety of production configurations. Controller height may be repositioned or removed completely from the press and relocated to a user preferred position.
  • 3.5” Color Touch-Screen User Interface enables programming of staking parameters and several quality management features. Allows the following to be displayed:
    • Temperature
    • Melt Time
    • Hold Time
    • Total Vertical Stroke
    • Resettable Parts Counter
    • Total Machine Cycle Counter
    • Diagnostic Display
    • Ethernet Connectivity
  • Precision Linear Stroke Encoder allows the system to monitor & control multiple process steps including contact height, weld travel, & final height. Weld Travel Pass/ Fail Windows allow user to set min/max weld travel alarm limits for quality control purposes.
  • Multi-Level Passcode Protection limits parameter adjustment to qualified personnel only.
  • 5 Weld Program/Setup Memory allows storage for instant recall, minimizing tool change time.
  • 3.14” (80mm) Diameter Press Cylinder delivers 620 lbs of clamping force.
  • 7.9” (200mm) Vertical Actuator Stroke permits loading/unloading with adequate clearance for most parts.
  • Adjustable Stroke Velocity permits control of the vertical speed of the welding head, allowing more precise control for sensitive applications.
  • Ergonomically Located Dual Cycle Activation Switches ensure operator safety from actuator descent.
  • Lockable Mechanical Stop prevents shift/migration of stop setting in even the worst vibrating environments.

 Optional Features

  • Special Energy Star Compliant Operating Voltages Transformer
  • 5.7” Color Screen User Interface
  • Expanded Input/Output Module

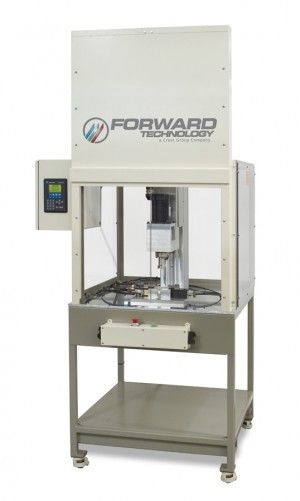

  • Welded Tubular Steel Support Frame with Leveling Feet
  • Light Screen Safety Protection
  • Pneumatic Powered Safety Door
  • Leveling Casters
  • LED Four Color Light Tower
  • Fixture Clamp Valve
  • Tooling Sensor(s)
  • Data Acquisition Program & 4G Micro-SD Card
  • Compressed Air Reserve Tank

Optional Accessories

Steps of Operation

  1. Operator loads part halves into holding fixture
  2. Operator initiates both cycle activation switches
  3. When target temperature of thermal tooling is reached, the actuator moves thermal stake tooling toward fixtured part
  4. Operator is permitted to release cycle activation switches after part to part contact is made
  5. Thermal stake tooling performs the recipe adjustable (time, temperature, pressure, distance) staking process
  6. Welded parts are blasted with cold air to “snap cool” the parts
  7. Actuator retracts to home position
  8. Operator removes welded part from fixture
