Digital (Servo-Drive) Linear Vibration Welder

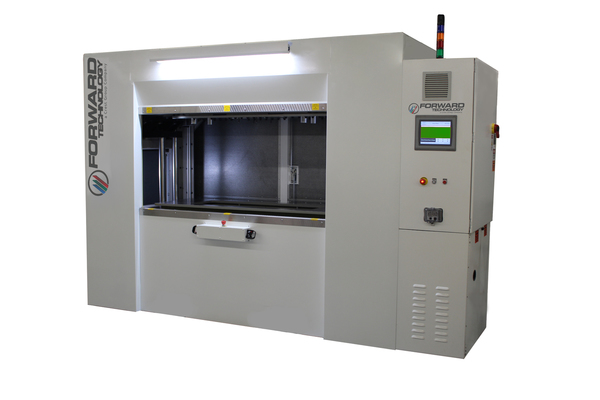

The DLVW-2472 is a hydraulic motion controlled digital (servo-electric) drive linear vibration welder capable of welding parts up to 24" x 72" (610mm x 1829mm) or multiple smaller parts.
The patented 2-pole digital (servo) drive technology allows vastly improved process control while substantially increasing the available power. This technology offers improvements in overall efficiency (significant power increase), capability (amplitude/process control), and productivity (application benefits) beyond any vibration welding design currently on the market.
The patented 2-pole digital (servo) drive technology allows vastly improved process control while substantially increasing the available power. This technology offers improvements in overall efficiency (significant power increase), capability (amplitude/process control), and productivity (application benefits) beyond any vibration welding design currently on the market.
- Operator loads part halves into holding fixture(s).
- Operator initiates cycle activation switches.
- Safety door closes.
- Lift table rises, applying pressure between the two part halves.
- Vibration begins, melting the joint area between the two halves.
- Vibration stops when user programmed target Time (or optional Collapse Distance or Absolute Distance) is reached.
- Parts are held together under pressure to allow them to re-solidify.
- Lift table lowers, carrying part(s) in lower fixture(s).
- Safety door opens.
- Operator unloads part(s) from lower fixture(s).
