Ultrasonic Joint Designs
Ultrasonic Joint Designs
The basic requirement of any ultrasonic joint design is a small, uniform initial contact area.The design varies with each application and depends on factors such as type of plastic resin to be bonded, part geometry and requirements of the weld.

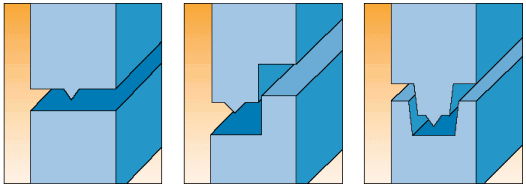

Energy Director
Normally a triangular section on the joint that serves to concentrate ultrasonic energy and rapidly initiates melting of the joining surfaces. Common joints, which incorporate the use of an energy director, include: butt joints, step joints, and tongue and groove joints.
Shear Joints
This type of joint is preferred for parts that require a hermetic seal or for plastics that change rapidly from a solid to molten state over a very narrow temperature range.
